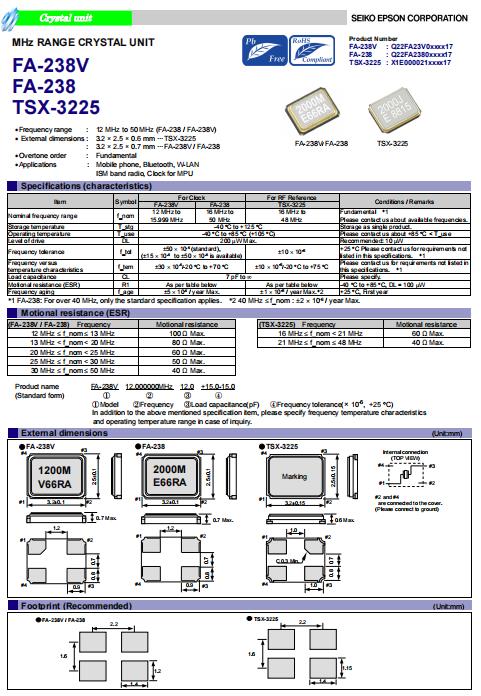

蘋果手機藍牙專用TSX-3225無源晶振編碼X1E000021015516，愛普生公司在晶體行業有著幾十年的豐富經驗，由于不斷積累行業的經驗，如今已到達一個爆發點，能夠快速結合當下市場的需求，開發出高質量的產品，愛普生非常高興推出了貼片晶振TSX-3225晶振，編碼X1E000021015516，頻率27.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.6 mm，客戶負載電容16pf，頻率公差+ / -10 ppm，F(xiàn)o / temp。特征公差+ / -10 ppm，溫度范圍-20至+75°C，具有超高的可靠性能，低損耗的特點，十分適合用于超高精密應用，蘋果手機藍牙，無線模塊，智能家居，醫療設備等行業。

蘋果手機藍牙專用TSX-3225無源晶振編碼X1E000021015516，愛普生晶振公司推出的一款TSX-3225進口晶振無源晶振,因基頻晶振穩定性更高，非常適用于通信設備、工業電子、汽車電子、消費電子行業，最典型的應用為時鐘和微機。

產品編碼	尺寸	型號	愛普生晶振	負載	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range	ESR [Max]
X1E000021014716	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	9 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021014816	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021014916	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021015016	3.2 x 2.5 x 0.6mm	TSX-3225	26.000000 MHz	16 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021015116	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021015216	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021015316	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021015416	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021015516	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021015616	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	8 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021015716	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	9 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021015816	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021015916	3.2 x 2.5 x 0.6mm	TSX-3225	27.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
X1E000021016116	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021016216	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021016316	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021016416	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021016516	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021016616	3.2 x 2.5 x 0.6mm	TSX-3225	32.000000 MHz	8 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω
